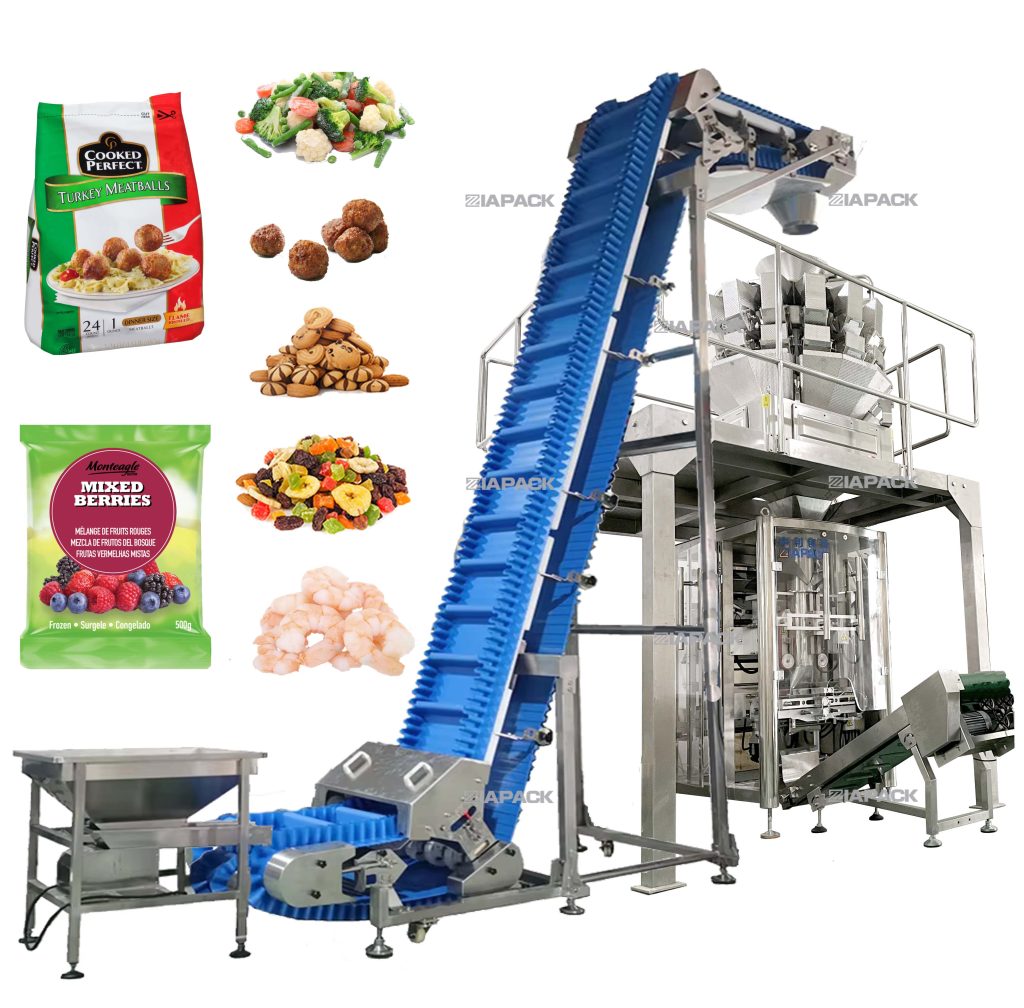

Automatic frozen food weighing filling packaging machine

Einführung :

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

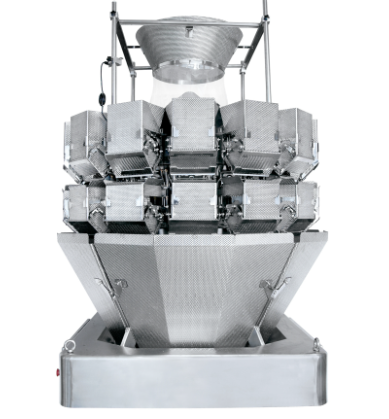

Anwendung:

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

Eigenschaften:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Spezifikationen:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

Einführung :

Diese Maschine kann automatisch Funktionen wie Beutelherstellung, Füllen, Versiegeln, Drucken, Schneiden usw. realisieren. Diese Maschine kann automatisch das Füllen und Versiegeln von Beuteln erreichen.

Diese Verpackungsmaschine verwendet einen Import-Servomotor für den Folienvorschub und die Mensch-Maschine-Schnittstelle verwendet einen fortschrittlichen Touchscreen. Die Bedienung ist einfacher und bequemer. Alle Komponenten sind international bekannte Marken, SPS ist SIEMENS, Servomotor ist PANASONIC, Touchscreen ist SIEMENS, Zylinder und Luftventil sind SMC. Teile, die mit Material in Berührung kommen 、Schaltschrank 、Hauptrahmen bestehen aus Edelstahl 304

Technische Parameter:

Verpackungsgeschwindigkeit (MAX): 20-50 Beutel/min

Beuteltyp: Kissenbeutel. Seitenfaltenbeutel

Bag size: bag width 60-250mm bag length 80-350mm

Druckluftverbrauch: 0,6 MPa 350 L/min

Elektrischer Bedarf: 380V/5,5 kW50 Hz
